一、概述

皮帶機綜合保護裝置主機以礦用本安型PLC為控制核心，有極高的可靠性和性價比，強大的通訊能力，液晶屏漢字顯示、語音報警等優點，是一種適用于在煤塵、瓦斯等危險環境中使用的智能控制裝置，能實現各種場合中膠帶運輸機的檢測、監測及控制自動化。

This product uses mine intrinsically safe type PLC as the core control, so it has extremely high reliability and cost-effective, powerful communications capabilities, LCD Chinese display, voice alarm etc. so many advantages, that it is a kind of intelligent control device applicable to coal dust, gas and other hazardous environments, to achieve the belt conveyor detection, monitoring and controlling automatically.

二、主要特點

Main feature

1、可靠性強；Reliable

2、采用漢字液晶屏來顯示各種信息；

Chinese character LCD screen to display informations.

3、有強大的通訊能力；

Powerful communication capacity.

4、適用范圍廣：可根據用戶要求定制PLC程序；

Widely application range: PLC can be programmed according to client’s requirements.

5、故障信息保留功能；

Fault information reservation

6、共有速度、溫度、煙霧、跑偏、堆煤、撕裂、張緊力和灑水8種保護功能。

There are 8 protection functions of speed, temperature, smoke, offset, coal piling, cracking, tension and watering.

三、適用環境條件

1、海拔高度≤2000m；

2、環境溫度：﹣10℃～﹢40℃；

3、大氣壓力：80KPa～108Kpa；

4、相對濕度≤95%RH（25℃）；

5、無劇烈沖擊和震動；

6、無腐蝕金屬和絕緣的化學物質。

Application environment:

1. Ambient temperature: -10℃～40℃

2. Relative humidity: ≤95%（＋25℃）

3. Atmospheric pressure: 80～106Kpa

 4. Altitude ≤2000m

 5. Places where there is no strong shaking or impact.

 6. Places where there is no chemical material can corrode metal and insulation.

四、主要技術參數

Technical parameters

1、供電電源：AC127/36V   額定電壓75%～110%波動范圍；

2、本安參數：DC12V  I0  930mA；

3、顯示與操作：本安腔面板上有液晶漢字顯示器128×64點陣，可顯示16個英漢×4行或8個漢字×4行；

4、集控臺數：8臺內。

1. Supply voltage: AC127V, fluctuation range of power supply voltage: 75%～110%

2. Parameters of intrinsic safety ：DC12V  I0  930mA；

3. Display and operation: Chinese character LCD screen (128×64 lattice), which can display 16 English letters×4 lines or 8 Chinese characters ×4 lines.

4. Controlling capacity: within 8 sets.

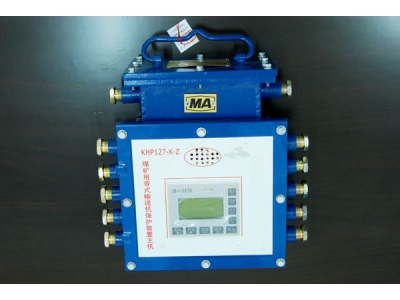

KHP127-K-Z煤礦用帶式輸送機綜合保護裝置主機 實物圖



KHP127-K-Z煤礦用帶式輸送機綜合保護裝置主機（配張力傳感器）
